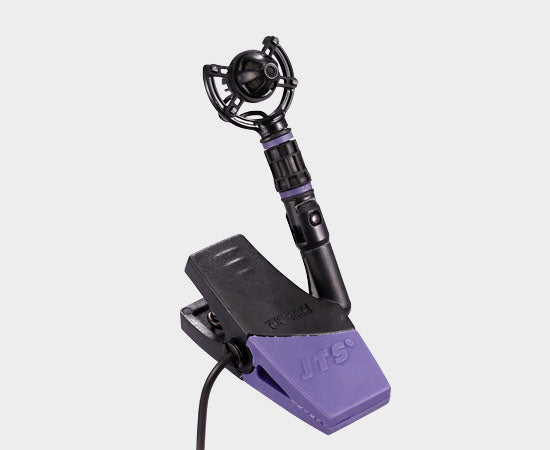

JTS CX-506 Condenser Drum & Percussion Microphone

Condenser Drum & Percussion Microphone

With a smooth uniform frequency response, the JTS CX-506 is optimized for use with drums and percussion instruments.

The unique design and miniature profile provides for minimal physical size interference for the musician.

■ Low noise electronic circuitry together with balanced output provides isolation from ambient noise.
■ The shock mount clamp greatly reduces extraneous mechanical noise and ensures secure mounting on drum rims, percussion instruments,
and cymbal stands in either a horizontal or vertical position.
■ Excellent natural reproduction of drums and percussion, accurately and purely without coloration.

Type Electret Condenser
Frequency Response 50~18,000 Hz
Polar Pattern Cardioid
Sensitivity(at 1,000Hz) -64dB*(0.63mV) at 1,000 Hz
Output Impedance 220Ω ± 30%
Max. SPL for 1% THD 130 dB
Output connector 3P. XLR (M) type
Net Weight Metallic enamel-painted die cast metal body
with hardened, matte-finished steel grille
Net Weight 230 grams (8.1 oz)
Touch Noise. Super low
Power Supply 9-52V phantom power
