EVH 5150 DLX, EBNY FB, QM, PRPL DZE

Descrizione
Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

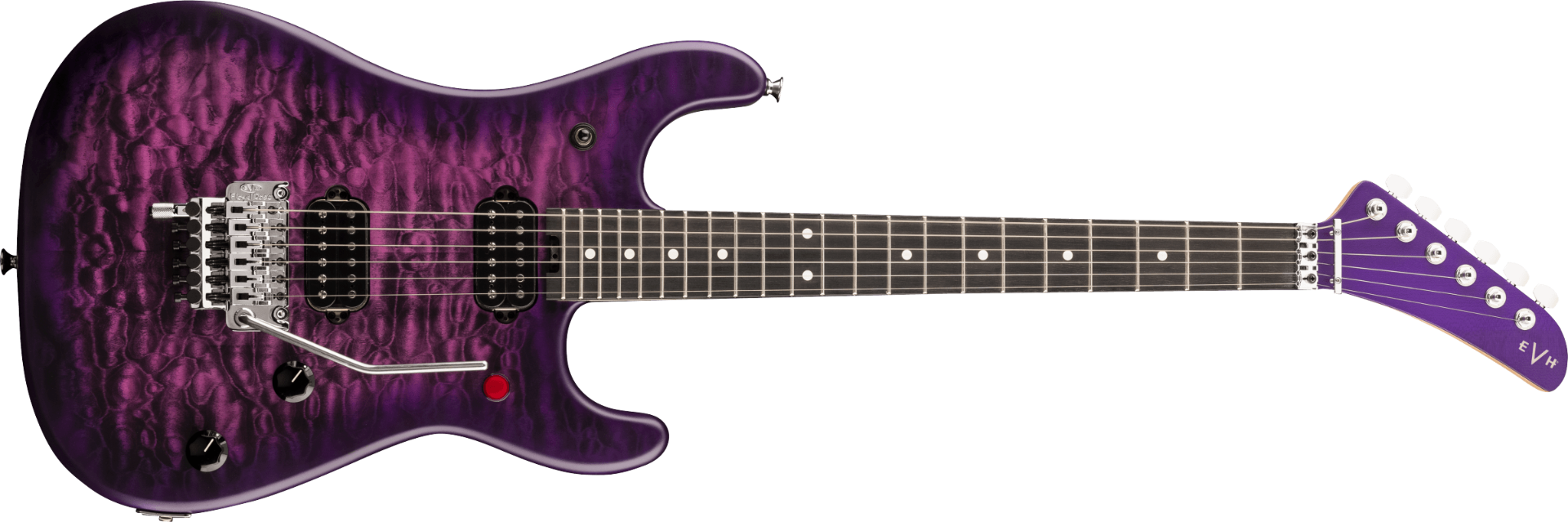

Like its predecessor, the 5150 Deluxe QM features a modified Strat®-style basswood body with a quilt maple top and deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with an HH pickup configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Specifiche del prodotto
Print
icon specs
Generale

Serie5150® Series Guitars
OrientamentoRight-Hand
ColorePurple Daze
Nazione di OrigineMX
icon specs
Manico

PalettaEVH® Hockey Stick
Materiale del manicoQuartersawn Maple
Finitura manicoHand-Rubbed Satin Urethane
Forma del manicoEVH® Modified "C" Backshape
Costruzione ManicoBolt-On with Graphite Reinforcement
Spessore Manico.790" at 3rd Fret & .810" at 12th Fret
Raggio tastiera12"-16" Compound Radius (304.8 mm to 406.4 mm)
Materiale TastieraEbony
SegnatastiCream Dot
Segnaposizione Laterali
Numero di tasti22
Dado del Truss RodHeel-Mount Truss Rod Adjustment Wheel
CapotastoFloyd Rose® R3 Locking
Larghezza capotasto1.685" (42.8 mm)
Materiale del CapotastoFloyd Rose® R3 Locking
icon specs
Corpo

CorpoBasswood
Finitura corpoSatin Urethane
Forma corpo5150™
Top del CorpoQuilt Maple
Materiale del CorpoBasswood
sku-image
icon specs
Hardware

PonteTop-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Blocco del VibratoBrass
Pickup CoversBlack
Manopole di controlloBlack Knurled with White Indicator
Punta Levetta SelettoreBlack
Finitura hardwareChrome
Strumenti per l’accordaturaEVH®-Branded Gotoh®
Alberelli AbbassacordeFloyd Rose® Retainer Bar
CordeEVH® Nickel Plated Steel (.009-.042 Gauges)
Leva del VibratoFloyd Rose® 1000 Series Locking
Piastra del Manico4-Bolt Standard
ReggicinghiaOversized
icon specs
Elettroniche

Pickup al ponteDirect Mount EVH® Wolfgang® Humbucking
Pickup al manicoDirect Mount EVH® Wolfgang® Humbucking
Configurazione del pickupHH
ControlliVolume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Switching3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Selezione AuxKill Switch
icon specs
Varie

Codice Merce9207901000
icon specs
Accessories

Accessori inclusiTremolo Arm, Hex Keys & User Manual
Chiave per Truss Rod2.5 mm Hex
icon specs
Measurements

Dimensioni4.40x15.30x42.00 IN
Shipping Weight10.80 LB
Dimensione del tastoJumbo
Ampiezza misura25.5" (648 mm)
Shipping Length42.00 IN
Shipping Height4.40 IN
Shipping Width15.30 IN
Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

A stylized modern spin on a fan favorite, the 5150 Deluxe is sure to stun with its rippling quilt maple top dressed in a vivid Purple Daze finish with all-chrome hardware, including the EVH-branded Gotoh® tuning machines.
